Google Tag Manager Installation Guide

This guide outlines two installation options for integrating Videobot events with Google Tag Manager (GTM). Choose the option that best fits your workflow.

Option A: Import GTM template as JSON

Step 1. Download the JSON template

Download the template file: videobot-gtm-template-20250304.json

Step 2. Import the template in GTM

WARNING

Do not overwrite the container, but use merge instead

Open your GTM container settings, and import the template you downloaded from Admin -> Import Container.

Step 3. Update Google Analytics tracking ID

Update your GA4 tracking ID into the newly created tag: GA4 - Videobot Events.

Step 4: Preview and Test

• Use GTM's Preview mode to ensure that:
  • The dataLayer events are correctly captured
  • Tags fire as expected
  • Data flows to your GA4 property

Step 5: Add Custom Dimensions and Metrics in GA4

1. Log in to your GA4 property.
2. Navigate to: Custom Definitions
3. Add the necessary custom dimensions and metrics that correspond to the Videobot dataLayer variables.

Done

Now you should be ready! Save and publish the container, and head to the guide for configuring GA4.

Option B: Install Tags, Triggers, and Variables Manually

These are the steps required for reproducing the content of the above template:

Step 1: Enable dataLayer events from the Videobot Dashboard

1. Open the Videobot you wish to track from the Videobots page
2. Navigate to the Videobot's Settings tab and then the Tracking & analytics section
3. Set the integration type to: Google Tag Manager (Website)
4. Save and Publish the changes
5. Repeat for each Videobot instance in use

Step 2: Add Videobot dataLayer Variables

Create the following Data Layer Variables under a folder named Videobot:

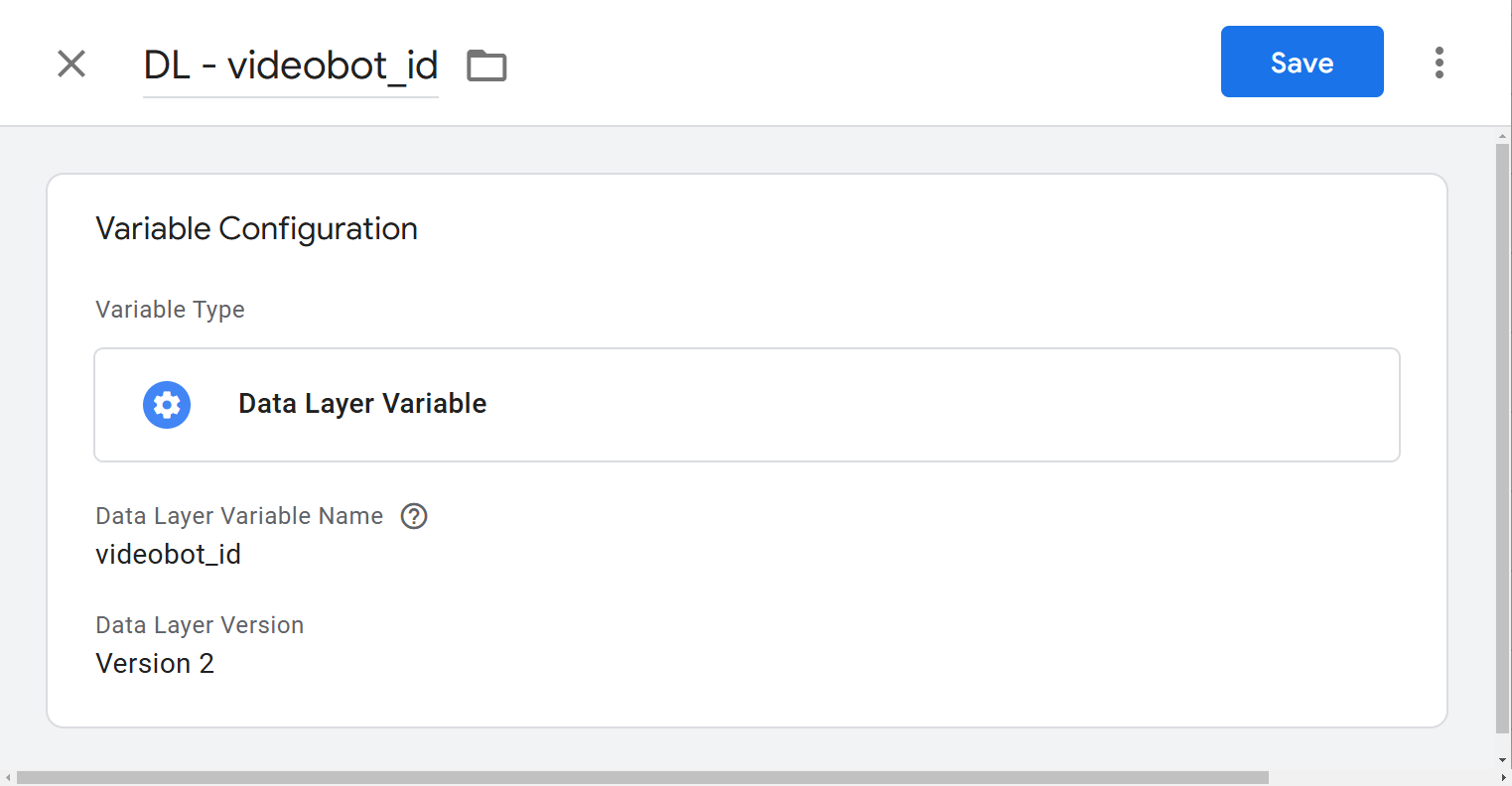

DL - videobot_id

Variable name: videobot_id

DL - videobot_language

Variable name: videobot_language

DL - videobot_referrer

Variable name: videobot_referrer

DL - videobot_event_type

Variable name: videobot_event_type

DL - videobot_click_text

Variable name: videobot_click_text

DL - videobot_click_url

Variable name: videobot_click_url

DL - videobot_current_slide_id

Variable name: videobot_current_slide_id

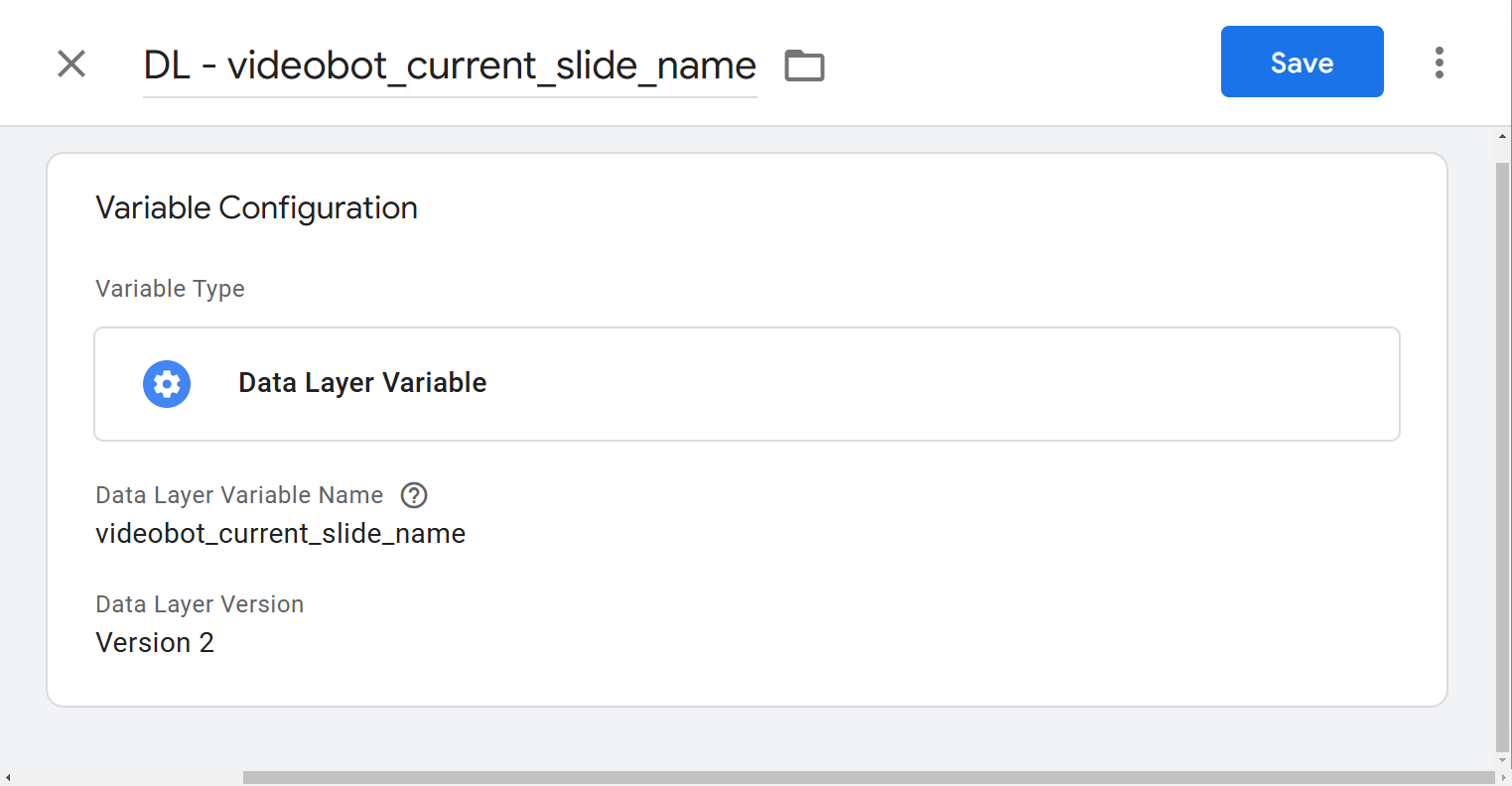

DL - videobot_current_slide_name

Variable name: videobot_current_slide_name

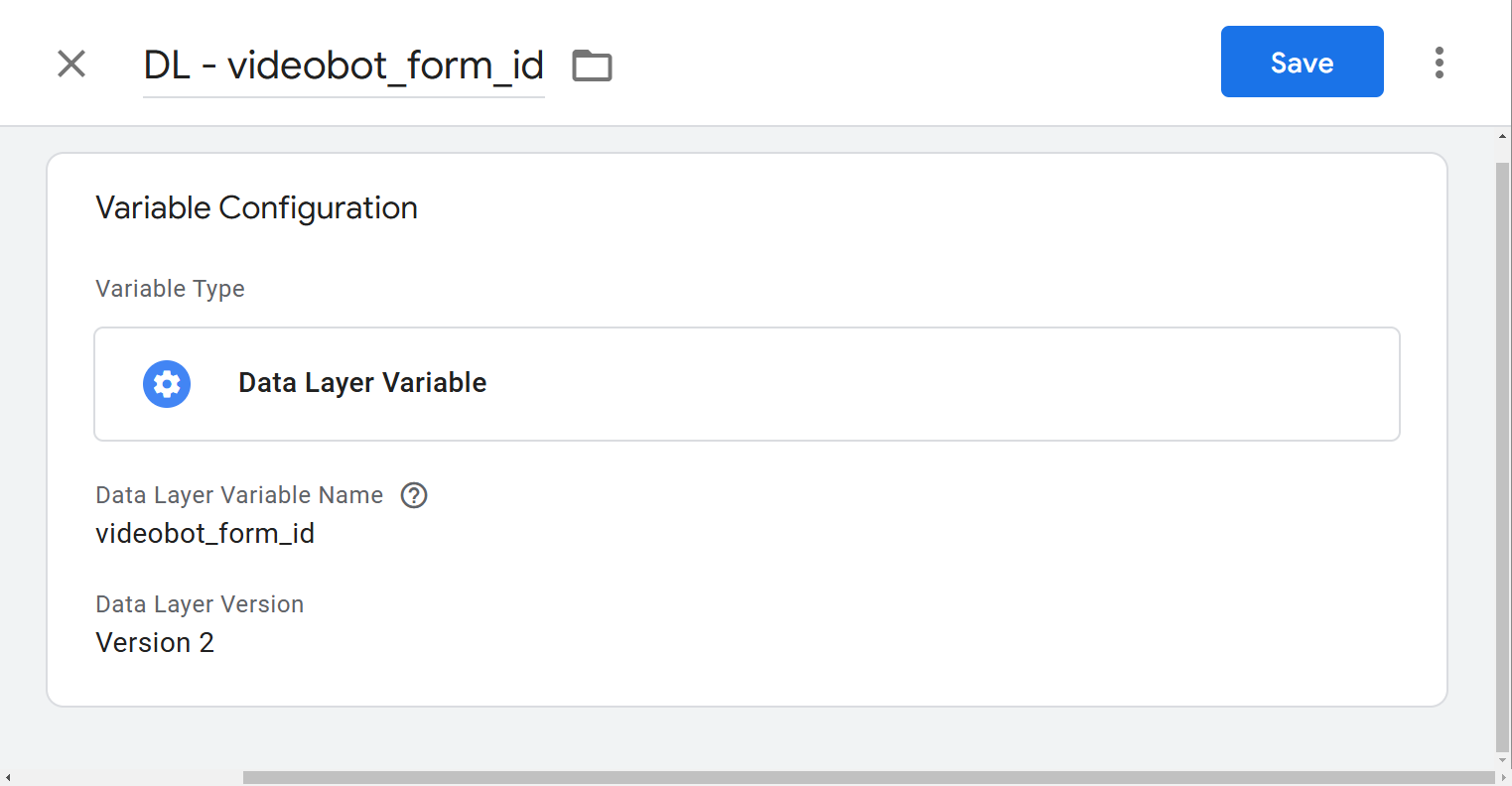

DL - videobot_form_id

Variable name: videobot_form_id

DL - videobot_form_name

Variable name: videobot_form_name

DL - videobot_next_slide_id

Variable name: videobot_next_slide_id

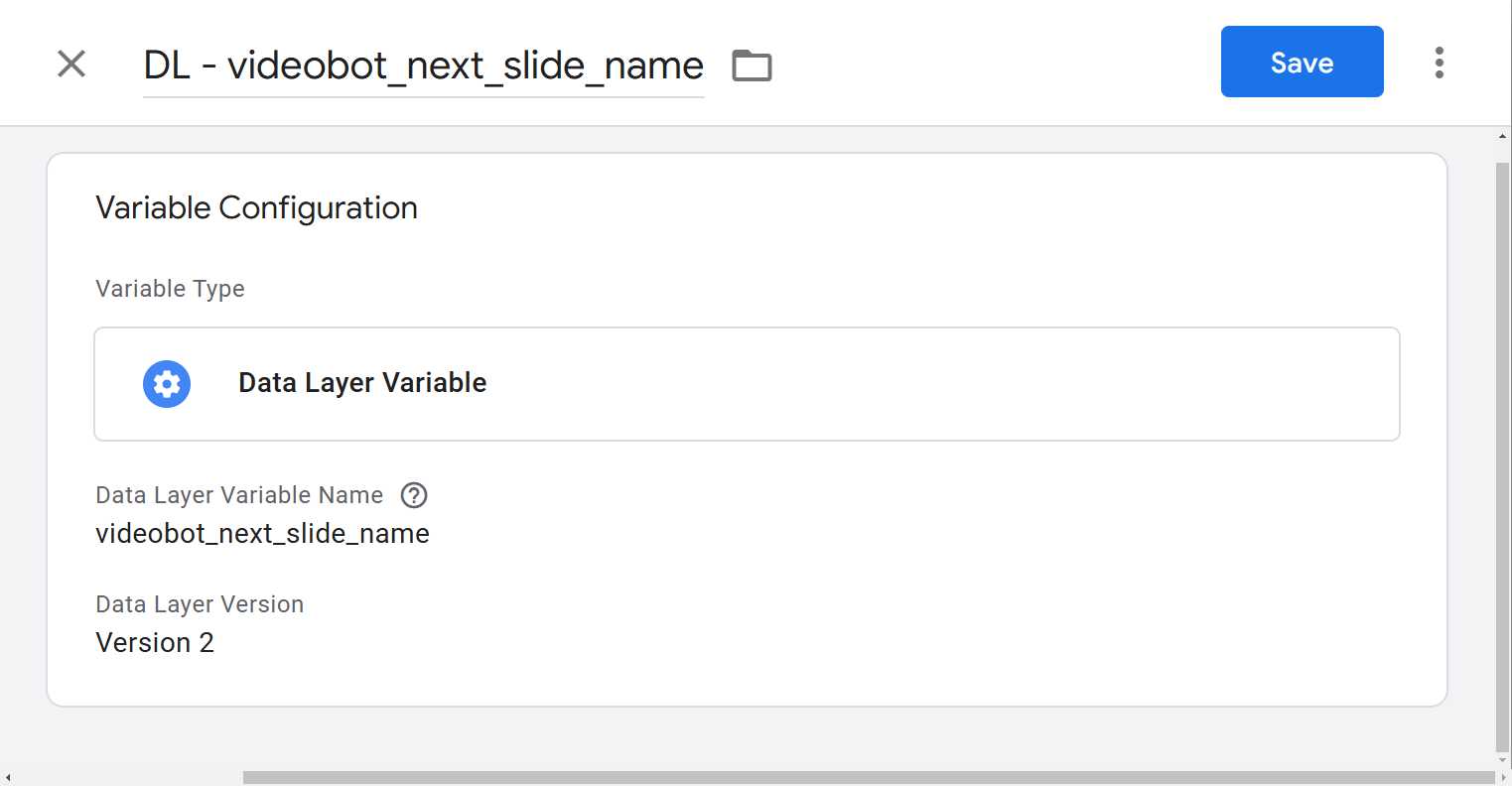

DL - videobot_next_slide_name

Variable name: videobot_next_slide_name

DL - videobot_slider_id

Variable name: videobot_slider_id

DL - videobot_video_id

Variable name: videobot_video_id

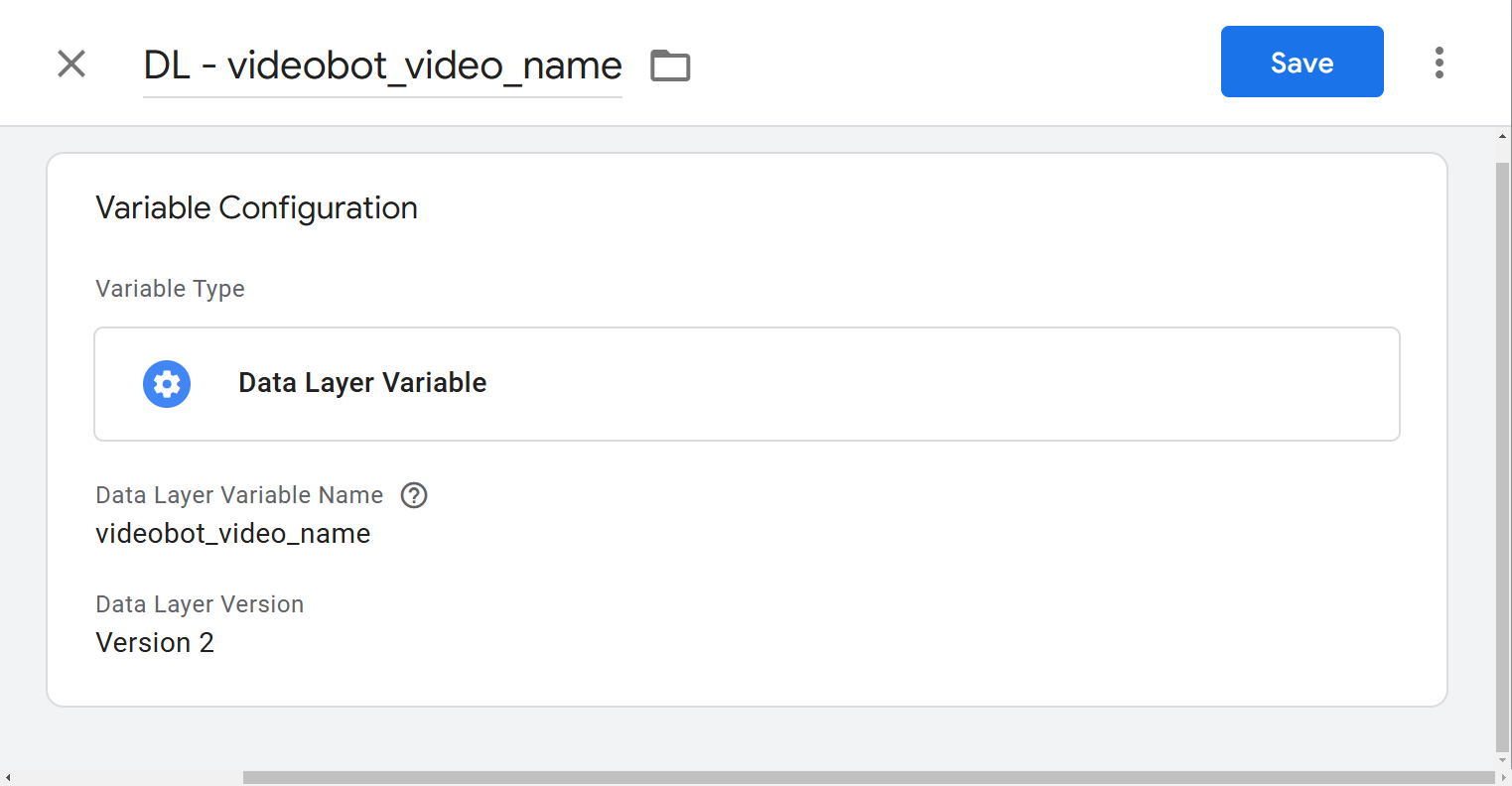

DL - videobot_video_name

Variable name: videobot_video_name

DL - videobot_video_time

Variable name: videobot_video_time

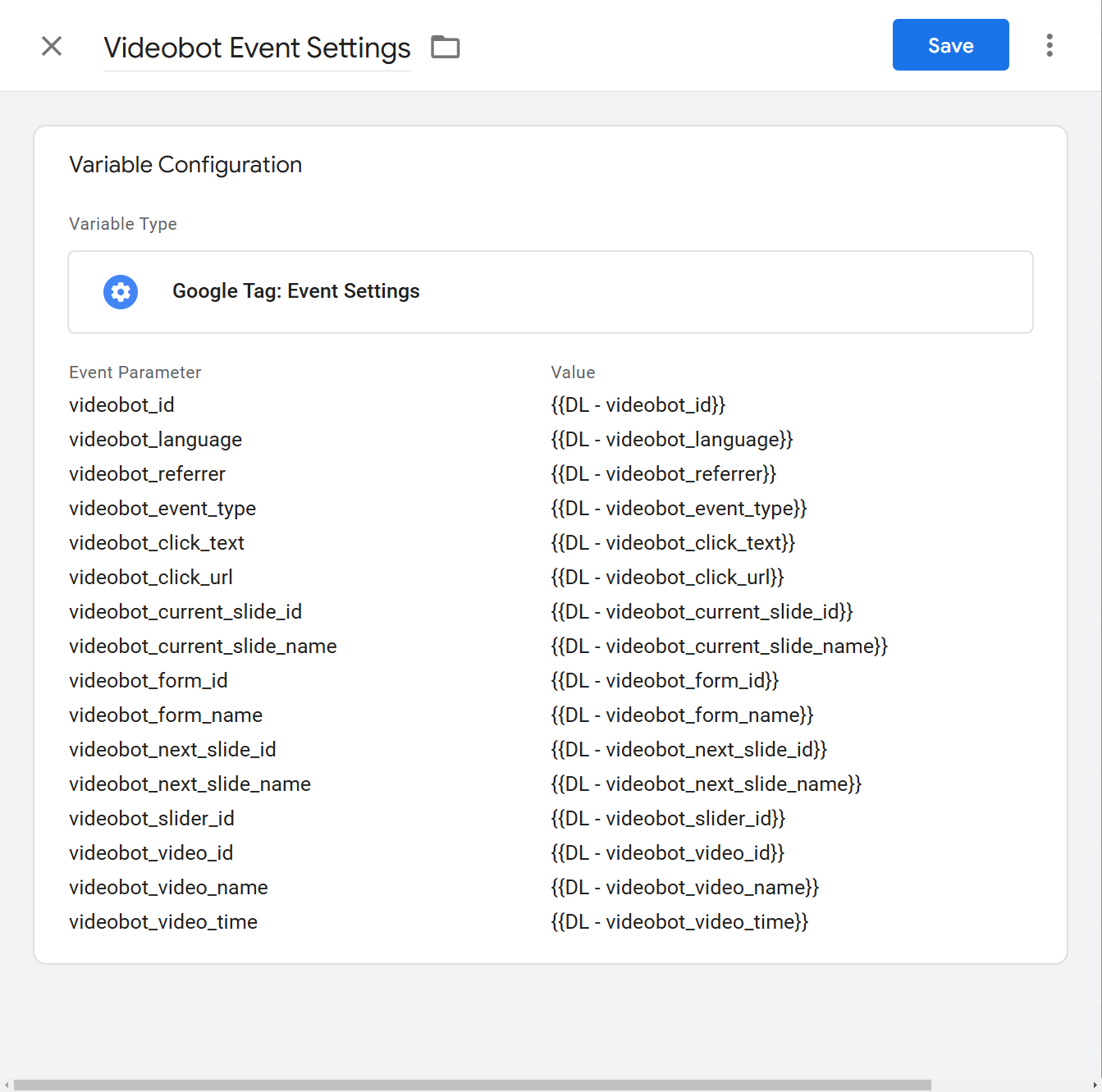

Step 3: Create the Videobot Event Settings Variable

1. Create a new variable of type Google Tag: Event Settings
2. Name: Videobot Event Settings
3. Add the Videobot dataLayer variables you just created, using logic such as: videobot_video_time = {{DL - videobot_video_time}}

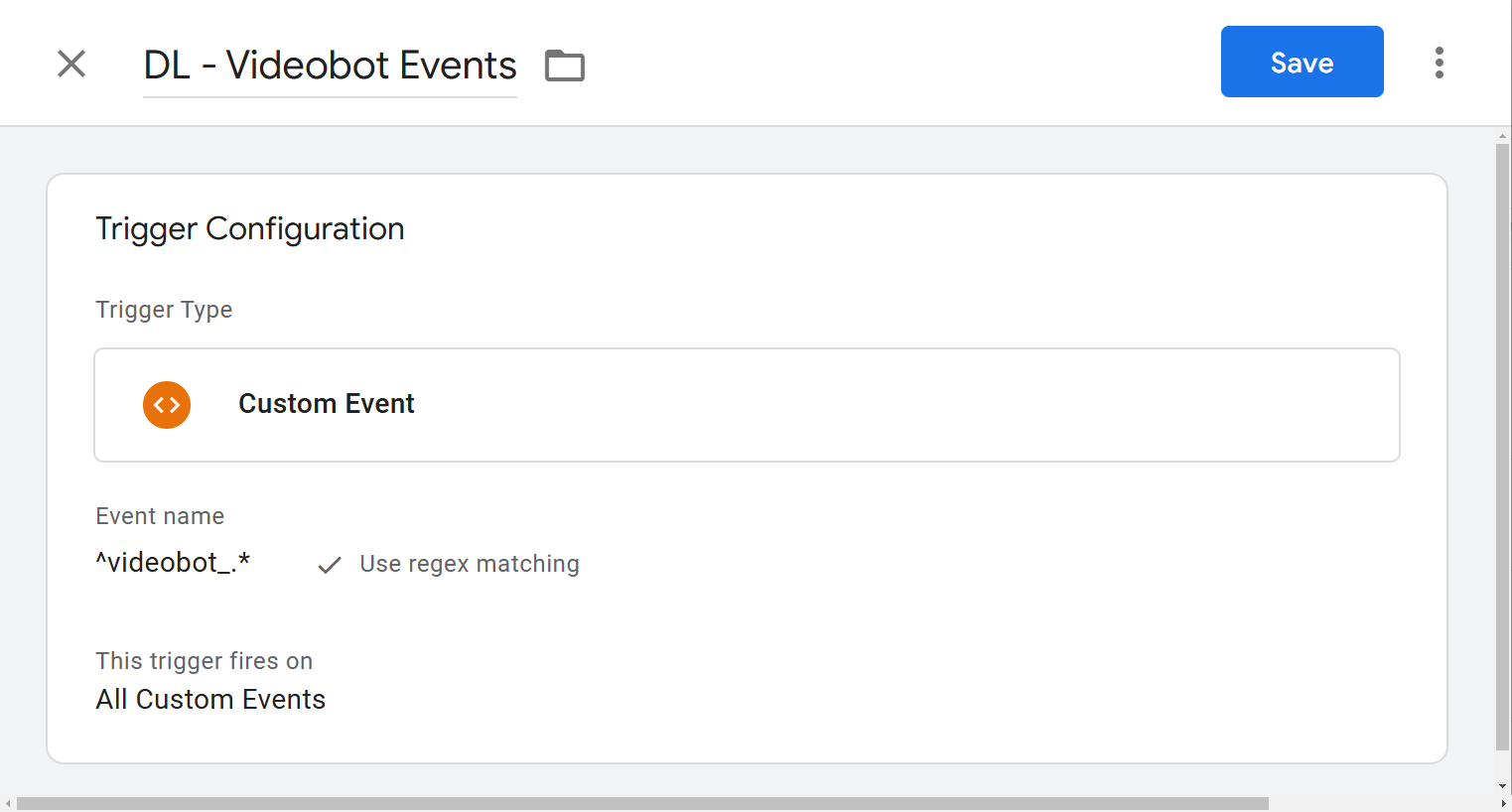

Step 4: Add the Videobot Trigger

1. Create a new trigger with the following configuration:
   • Trigger Name: DL - Videobot Events
   • Folder: Videobot
   • Trigger Type: Custom Event
   • Event Name: ^videobot_.*(This regex will capture all events that start with "videobot_")
   • Enable Regex Matching: Checked

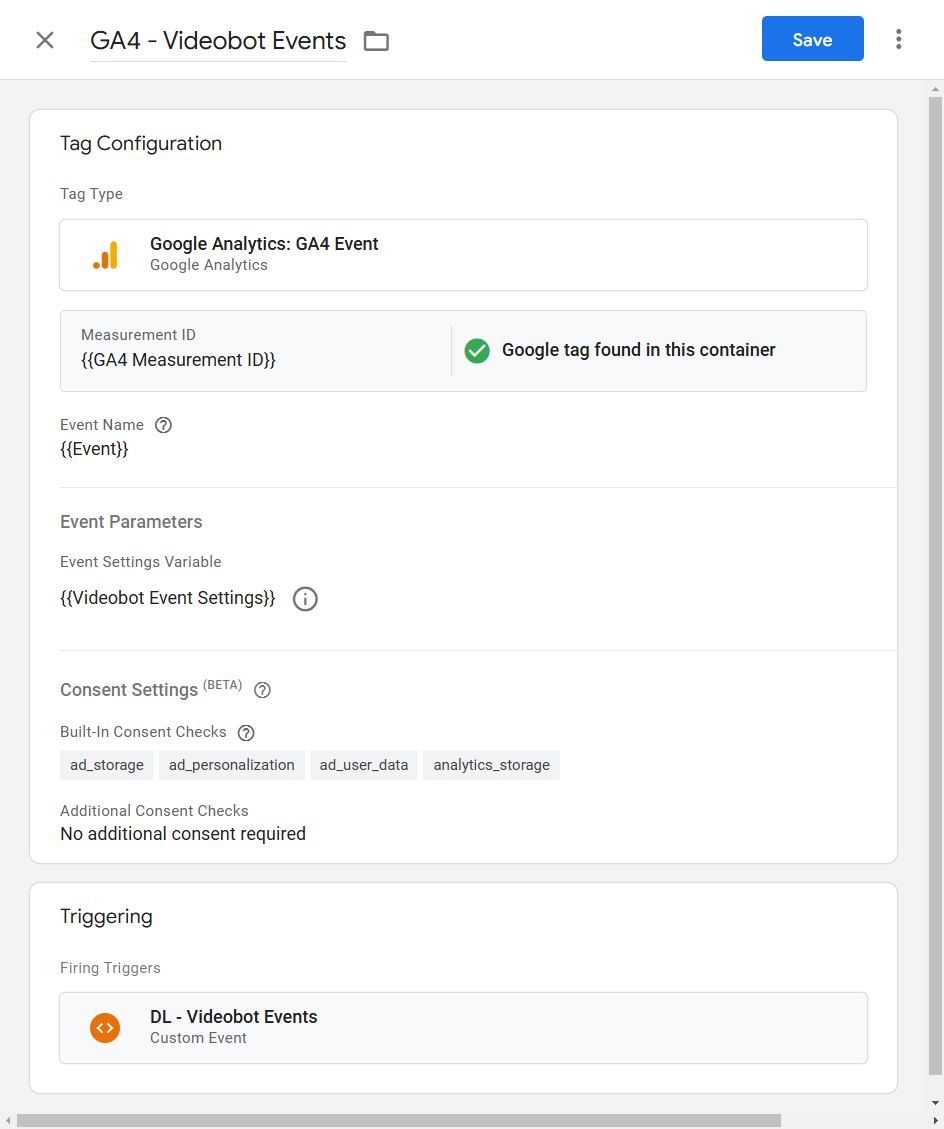

Step 5: Create the Analytics Event Tag

1. Create a new tag with these details:
   • Tag Name: GA4 - Videobot Events
   • Tag Type: Google Analytics: GA4 Event
   • Measurement ID: (Fill in your GA4 Measurement ID)
   • Trigger: DL - Videobot Events
   • Tag Firing Options: Once per event
2. Set the Event Name: {{Event}}

   Note: If the built-in variable Event does not exist, enable it in GTM.

Step 6: Preview and Test

• Use GTM's Preview mode to ensure that:
  • The dataLayer events are correctly captured
  • Tags fire as expected
  • Data flows to your GA4 property

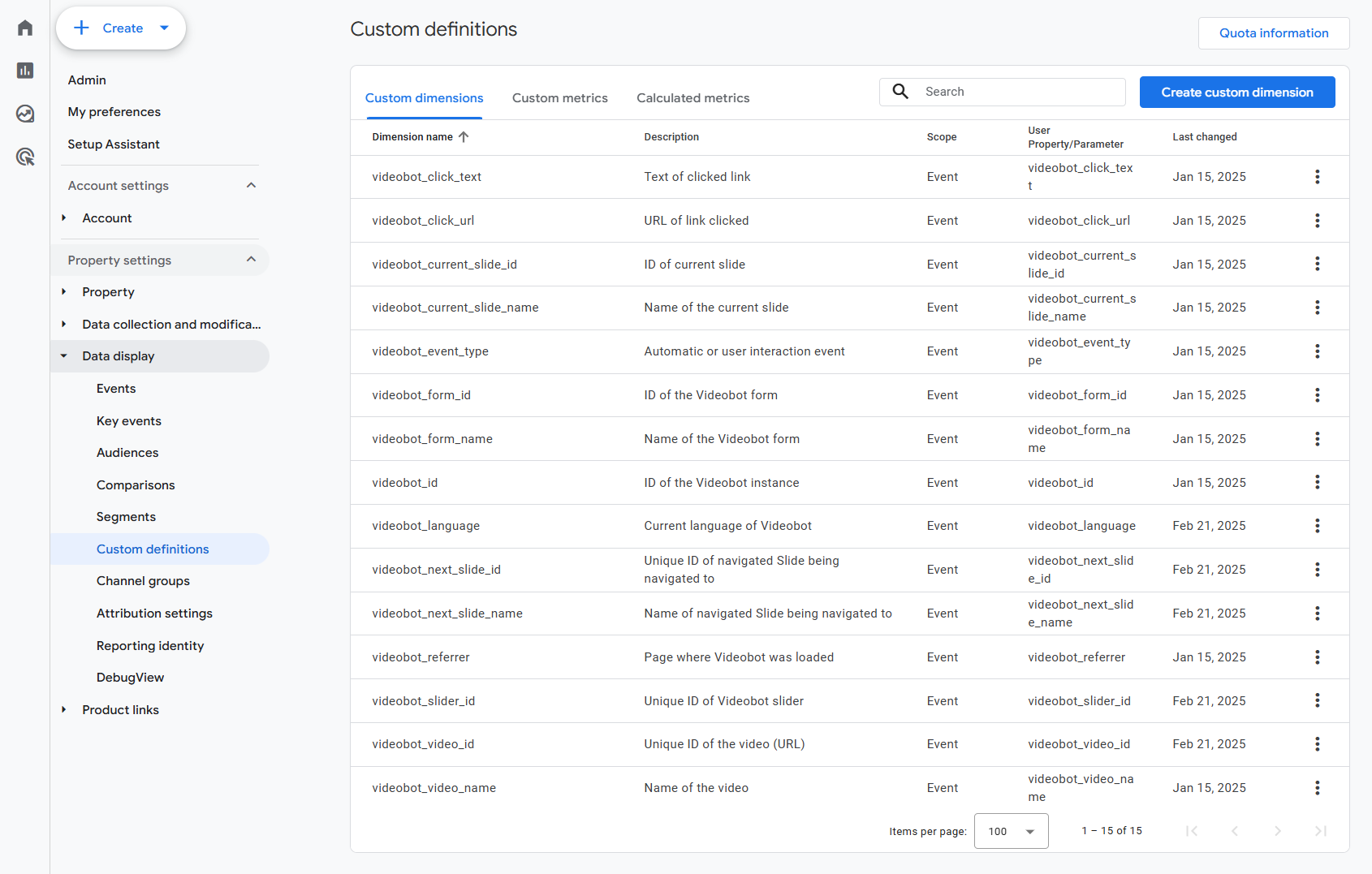

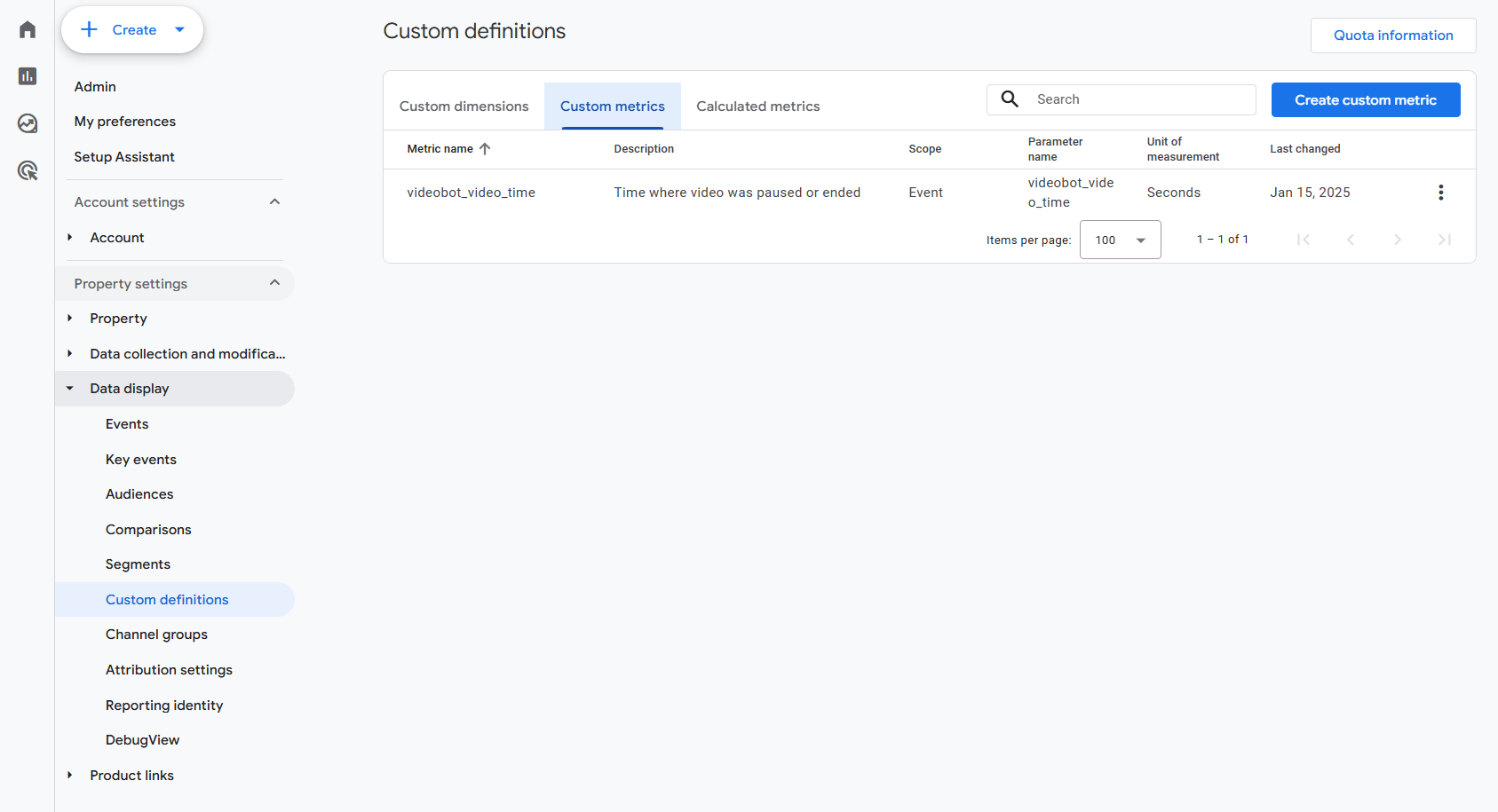

Step 7: Add Custom Dimensions and Metrics in GA4

1. Log in to your GA4 property.
2. Navigate to: Custom Definitions
3. Add the necessary custom dimensions and metrics that correspond to the Videobot dataLayer variables.

Setting up Google Analytics

Your GTM setup is now complete and you should be receiving events in GA4. See our next guide to see how to configure segments.
